Magnetic Rope Testing — Device Sales + NDT Service

01 WHO WE ARE

A manufacturer's instruments, a specialist's hands.

Dynamic has worked in crane safety since 2000. For wire-rope integrity we partner with AMC Instruments S.r.l. (Italy) — a recognised manufacturer of magnetic rope-testing equipment — as their authorised India distributor since 2019. You can buy the instrument from us, have our certified inspectors carry out the testing on-site as a service, or have your own team trained and certified. One partner, three ways to engage.

02 FULL-LIFECYCLE CAPABILITY

Sell the device, or run the test for you.

Magnetic rope testing is a skilled discipline. We meet you wherever you are — supply the instrument, deliver the inspection as a service, or build the capability inside your team.

DEVICE · 01

AMC instruments

Authorised India distributor for AMC (Italy) since 2019 — the full ROPE range plus the IAS-T acquisition tablet.

SERVICE · 02

NDT as a service

Dynamic-certified inspectors carry out on-site magnetic rope testing and deliver a reported result — no capex required.

TRAINING · 03

Operator + inspector

Operator and inspector training with AMC-recognised certification, so your team can run the equipment in-house.

STANDARDS · 04

ISO 4309 · EN 12927

Testing carried out to ISO 4309; measuring heads designed in compliance with EN 12927; CE-marked equipment.

03 MAGNETIC ROPE TESTING (MRT)

Non-destructive. Contactless. Inside the rope.

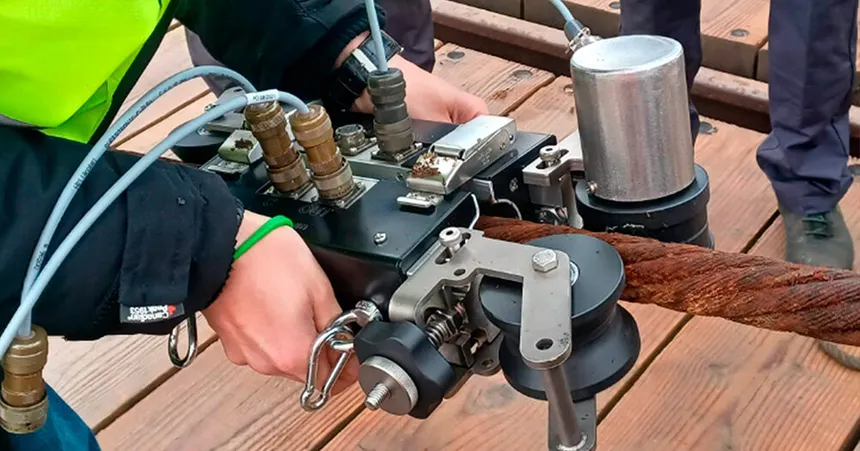

The MRT method is a non-destructive, magnetic, contactless procedure that detects broken wires, distortions and corrosion on steel wire ropes — including the internal damage a visual inspection can never see.

04 WHAT IT CHECKS

Six things a rope hides.

CHECK 01

Broken wires

Internal and external broken wires — the leading cause of rope failure — detected without stripping the rope.

CHECK 02

Loss of section

Reduction of metallic cross-section and diameter from wear and abrasion.

CHECK 03

Corrosion & rust

Internal and external corrosion, including pitting that weakens the core.

CHECK 04

Shape & lay

Variations of shape, irregularity of twisting and structural deformation.

05 THE INSTRUMENTS

Carried to the rope, read on the spot.

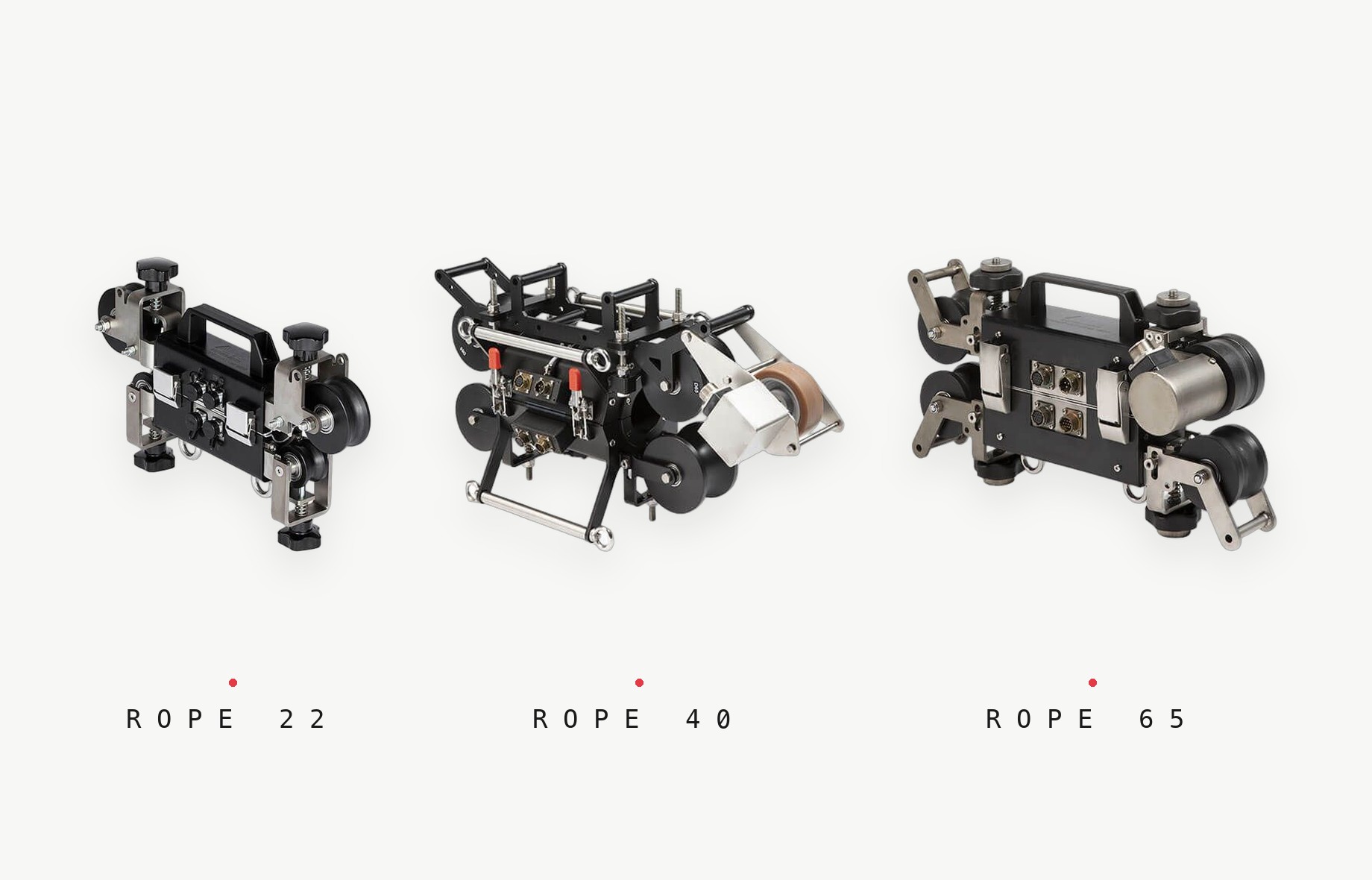

The AMC range covers the full working span of crane ropes: ROPE 22 for smaller ropes, ROPE 40 for mid sizes, and ROPE 65 for the largest — together spanning 6 mm to 65 mm diameter.

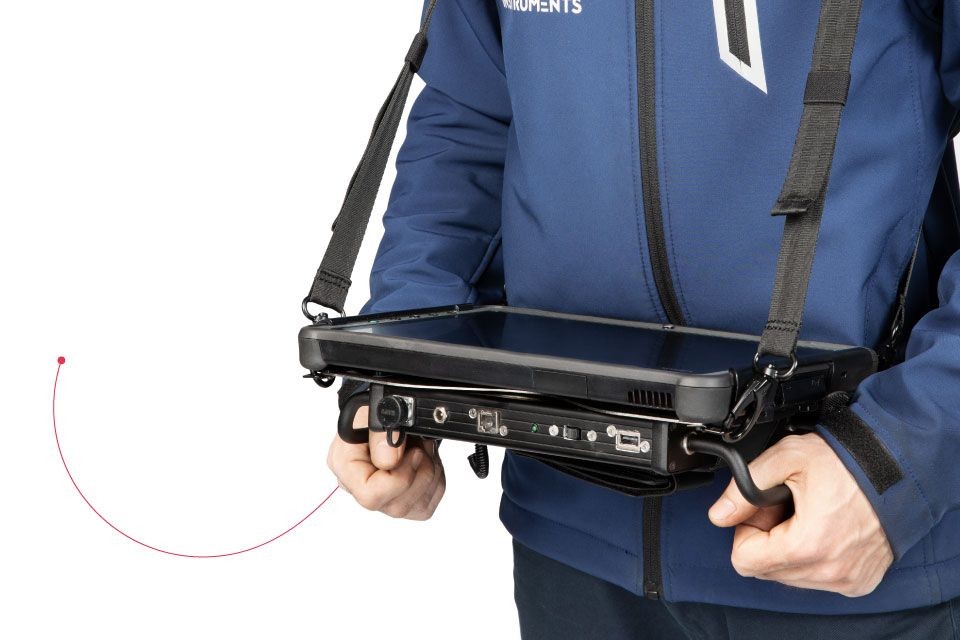

Each magnetic head pairs with the IAS-T acquisition unit — a 13″ Windows tablet that records the magnetic signal, displays the defect graph live, and stores the result for reporting.

06 WHY IT MATTERS

Built for on-site, at-height work.

Non-destructive

Inspect a rope in service without cutting or dismantling it.

Contactless

Magnetic sensing — no wear on the rope or the head.

Internal + external

Finds damage a visual check cannot — inside the rope.

Portable

Lightweight heads suited to on-site and height operations.

Reported results

IAS-T software stores data and produces inspection reports.

Full range

6–65 mm covers tower, EOT, gantry, offshore, crawler and lift ropes.

07 SPECIFICATION

Technical specification.

AMC MAGNETIC ROPE TESTING · ROPE 22 / 40 / 65AMC-DISTRIBUTED · CE

Method: magnetic, non-destructive, contactless (MRT)
Rope diameter: 6 mm to 65 mm (model-specific heads)
Heads: ROPE 22 / ROPE 40 / ROPE 65
Acquisition: IAS-T — 13″ Windows tablet, live graph + storage
Detects: broken wires, loss of section, corrosion, deformation
Test standard: ISO 4309
Head compliance: EN 12927
Conformity: CE-marked
Engagement: device sale · on-site NDT service · operator/inspector training

08 BEYOND THE CATALOGUE

Buy the kit, or just hand us the rope.

However you want to run it — purchase the AMC instrument, book our certified inspectors for on-site testing, or train your own crew — we set it up and support it. And for the rest of your crane safety needs, Dynamic Servitech designs and manufactures its own SLI, anti-collision and monitoring systems in-house.

See inside the rope.
